Choice/calculation: Machine Design - An Integrated Approach - Fundamentals of Machine Component Design - Shigley's Mechanical Engineering Design - Machinery's Handbook - Guide des sciences et technologies industrielles - Guide du calcul en mécanique - Guide du dessinateur industriel
For advanced calculations see Fasteners (Stress).
Fasteners | |
ISO 8992 | Fasteners - General requirements for bolts, screws, studs and nuts |
[Fixations - Conception Assemblages vissés à filetage métrique ISO] | |
NF E25-030-1 | Fixations - Règles de conception pour les assemblages précontraints - Démarche simplifiée |
NF E25-030-2 | Fixations - Règles de conception pour les assemblages précontraints - Démarche complète |
[Mechanical properties of fasteners made of carbon steel and alloy steel] | |
ISO 898-1 | Bolts, screws and studs |
ISO 898-2 | Nuts |
ISO 898-3 | Flat washers |
ISO 898-5 | Set screws |
ISO 898-7 | Torsional test and minimum torques for bolts and screws with nominal diameters 1 mm to 10 mm |
[Mechanical properties of corrosion resistant stainless steel fasteners] | |
ISO 3506-1 | Stainless steel - Bolts, screws and studs |
ISO 3506-2 | Stainless steel - Nuts |
ISO 3506-3 | Stainless steel - Set screws |
ISO 3506-4 | Stainless steel - Tapping screws |
ISO 3506-5 | Stainless steel - Special fasteners for high temperature applications |
ISO 3506-6 | Stainless steel - General rules for the selection of stainless steels and nickel alloys |
ISO 3506-7 | Stainless steel - Flat washers |
[Mechanical properties of non-ferrous metals fasteners] | |
EN 28839 | Bolts, screws, studs and nuts made of non-ferrous metals (Copper and Aluminium) |
[Clearance] | |
ISO 273 | Clearance holes for bolts and screws |
E25-017 | Éléments de fixation - Chambrages (lamages) des vis à métaux - Dimensions |
[Tolerances for fasteners] | |
ISO 4759-1 | Bolts, screws, studs and nuts - Grade A, B and C |
ISO 4759-3 | Washers for bolts, screws and nuts - Grades A, C and F |

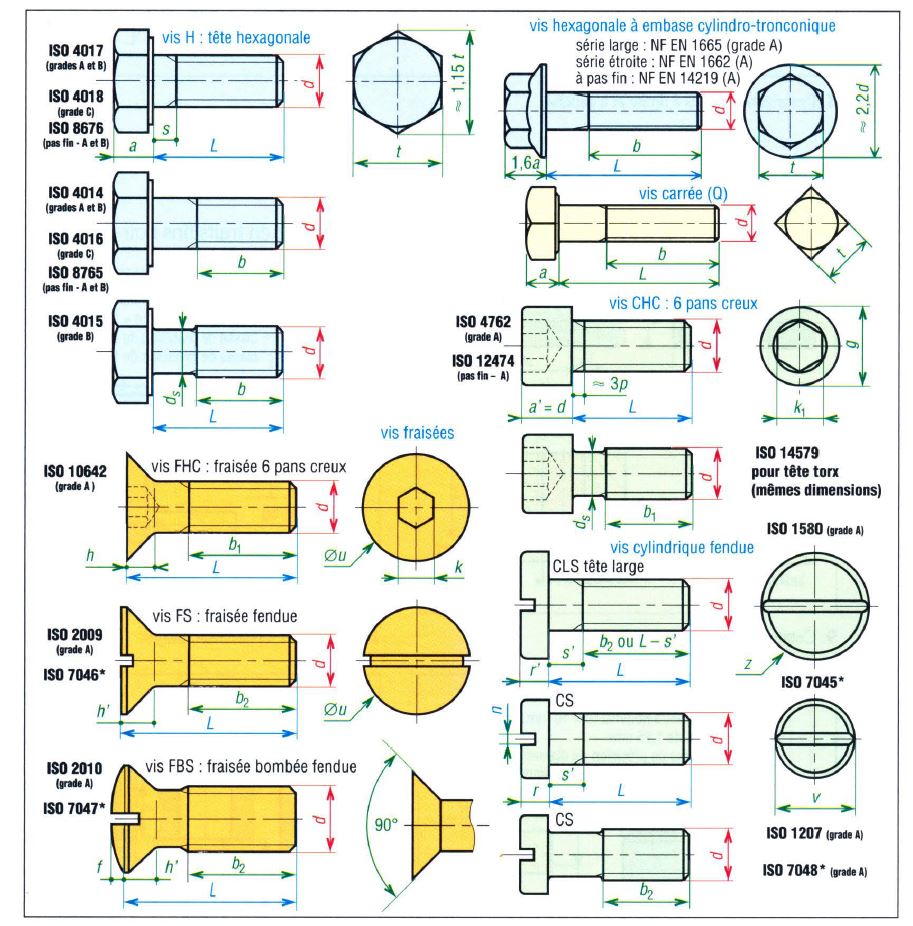

[Fasteners - Dimensions] | |
[Hexagon Head] | |
Hexagon Bolts with Flange | ISO 4162, ISO 15071/EN 1662, ISO 15072/EN 14219, ISO 1665 |
Hexagon Head Bolts | ISO 4014, ISO 4015, ISO 4016, ISO 8765 |
Hexagon Head Screws | ISO 4017, ISO 4018, ISO 8676 |
[Pan head screws] | |
Pan head screws | ISO 1207, ISO 7048 |
Large Pan head screws | ISO 1580, ISO 7045 |
Hexagon socket head cap screws | ISO 4762, ISO 12474 |
Hexalobular socket head cap screws | ISO 14579 |
[Countersunk head] | |
Countersunk flat head screws | ISO 10642, ISO 2009, ISO 7046-1, ISO 7046-2 |
Slotted raised countersunk head screws | ISO 2010, ISO 7047 |
[Testing] | |
ISO 16047 | Fasteners - Torque/clamp force testing |
